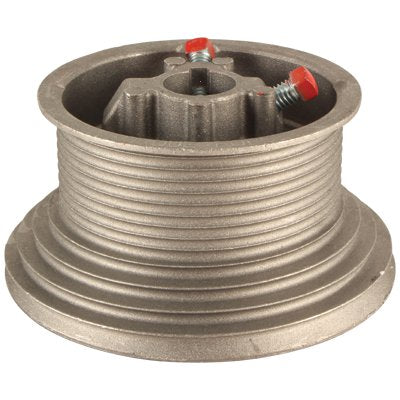

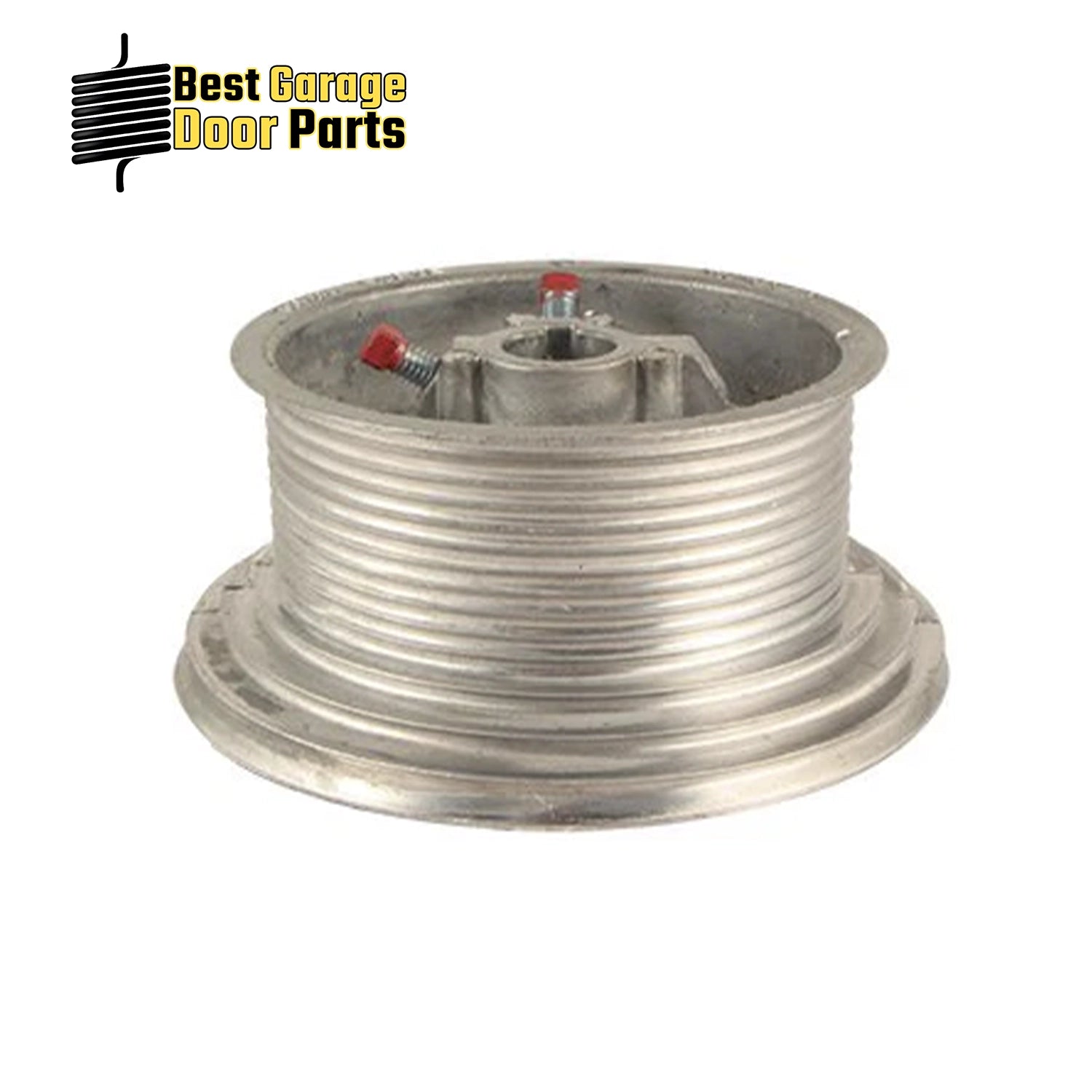

Designed for light-duty high-lift applications, the D400-54 Hi-Lift Drum set provides smooth cable travel and proper lift geometry for doors using up to 54 inches of hi-lift. With a 275 lb capacity per drum and support for 5/32” maximum cable, these drums are a solid choice for high-lift setups that require reliable performance and correct cable management.

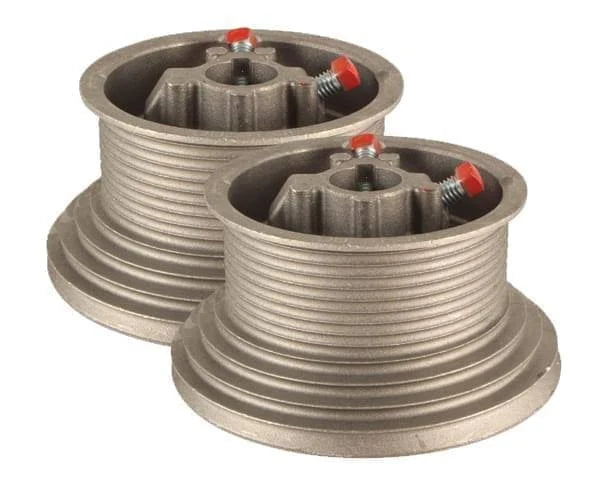

Sold as a pair for complete left/right installation.

 Key Features

• Hi-Lift Drums (54”) — For high-lift garage door configurations

• Maximum Hi-Lift: 54”

• Capacity: 275 lbs per drum (550 lbs per pair total capacity rating)

• Maximum Cable Size: 5/32”

• Sold in Pairs — Includes left and right drums for a complete setup

 Cable Length Formula (Important)

To calculate required cable length:

Cable Length = (Floor to shaft center + 63”) − (amount of hi-lift)

 Cross References

• Apco 400-54

• DNS 54 LC

• OMI 54 HL-LD

• M102-1375

 Installation Note

Hi-lift drums must match your lift amount, cable size, and door setup. Confirm specifications before ordering. Professional installation is recommended for proper balance and safe operation.
