IN STOCK. FAST SHIPPING.

Replace worn or broken springs with dependable residential torsion springs built for smooth, balanced garage door operation. Our torsion springs come with cones installed—including stationary and winding cones—so you get a ready-to-use setup when the correct spring is selected. Available in all wire sizes and common lengths from 20” to 50”, with additional sizes available by request.

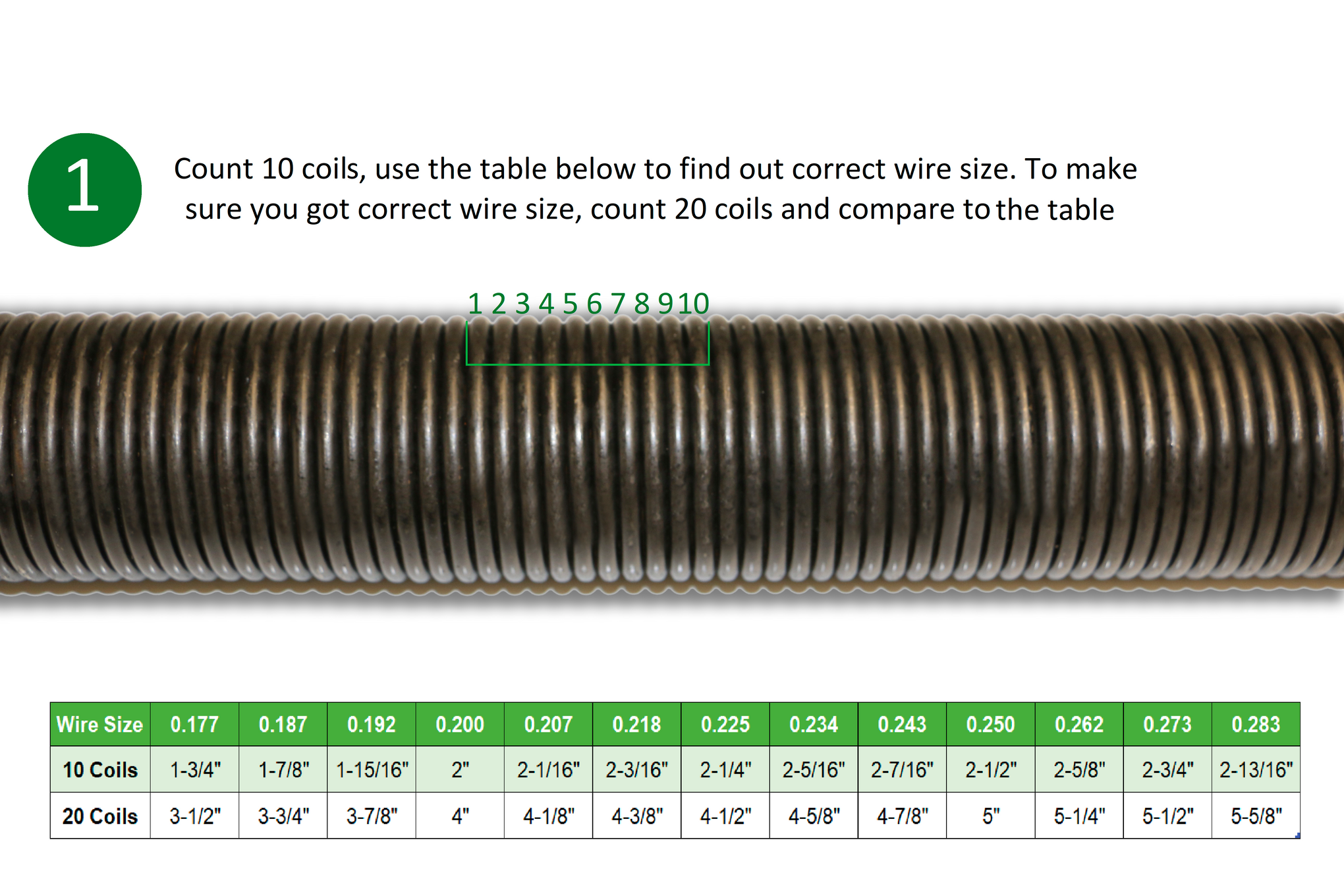

click to FIND OUT HOW TO MEASURE YOUR SPRINGS

 Key Features

• Residential Torsion Springs — All Sizes Available

• 10,000 Cycle Rated — Standard residential cycle life

• Cones Included and Installed — Stationary cone + winding cone installed for convenience

• Material Options: Coated Oil-Tempered or Galvanized

• Wire Size: All sizes available

• Length Range: 20” to 50” (contact us for other lengths)

 How to Choose the Correct Spring (Important)

Proper torsion springs must match your door. Selection typically depends on:

• Door weight and height

• Spring wire size

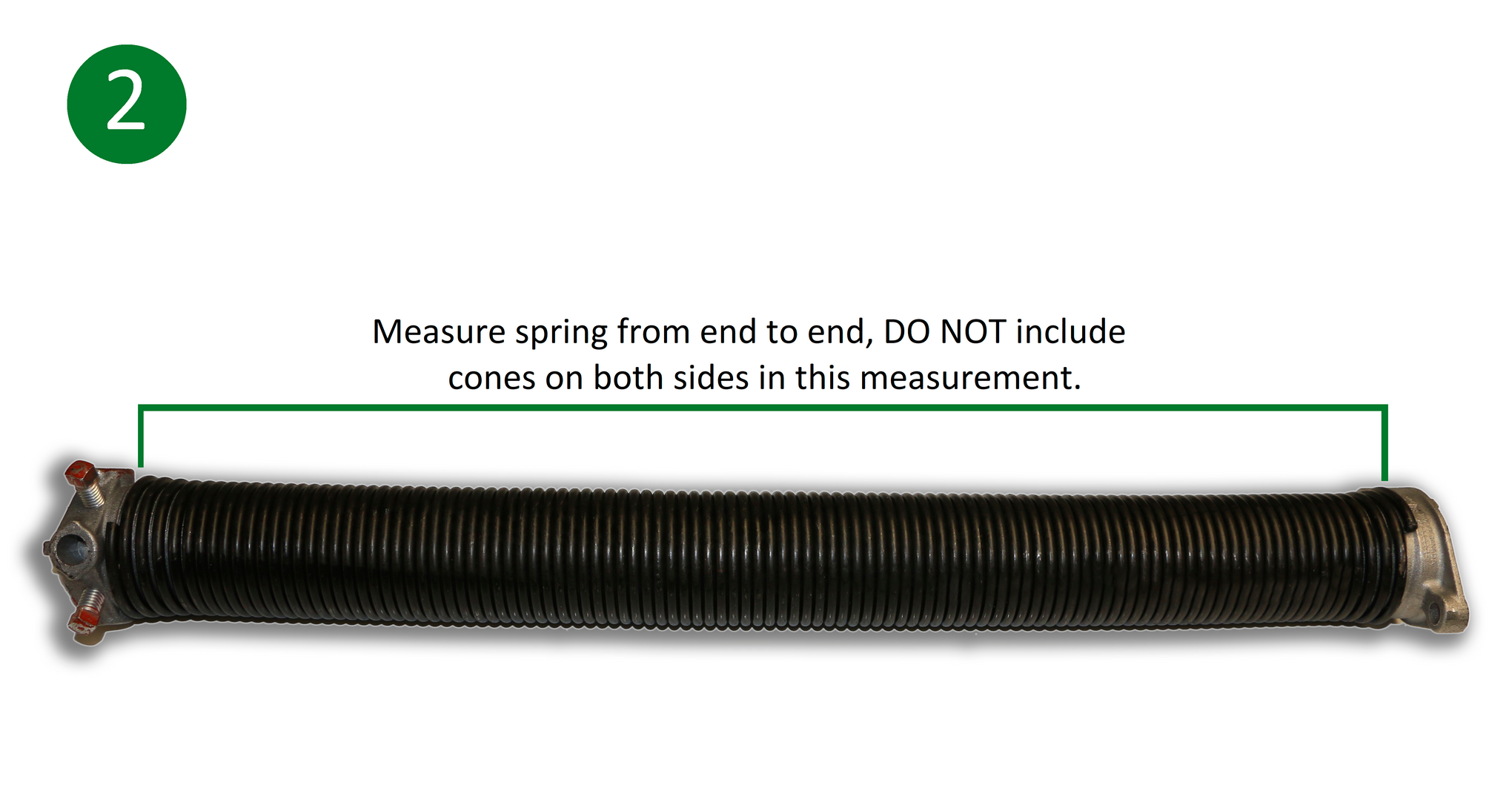

• Spring length

• Inside diameter (ID)

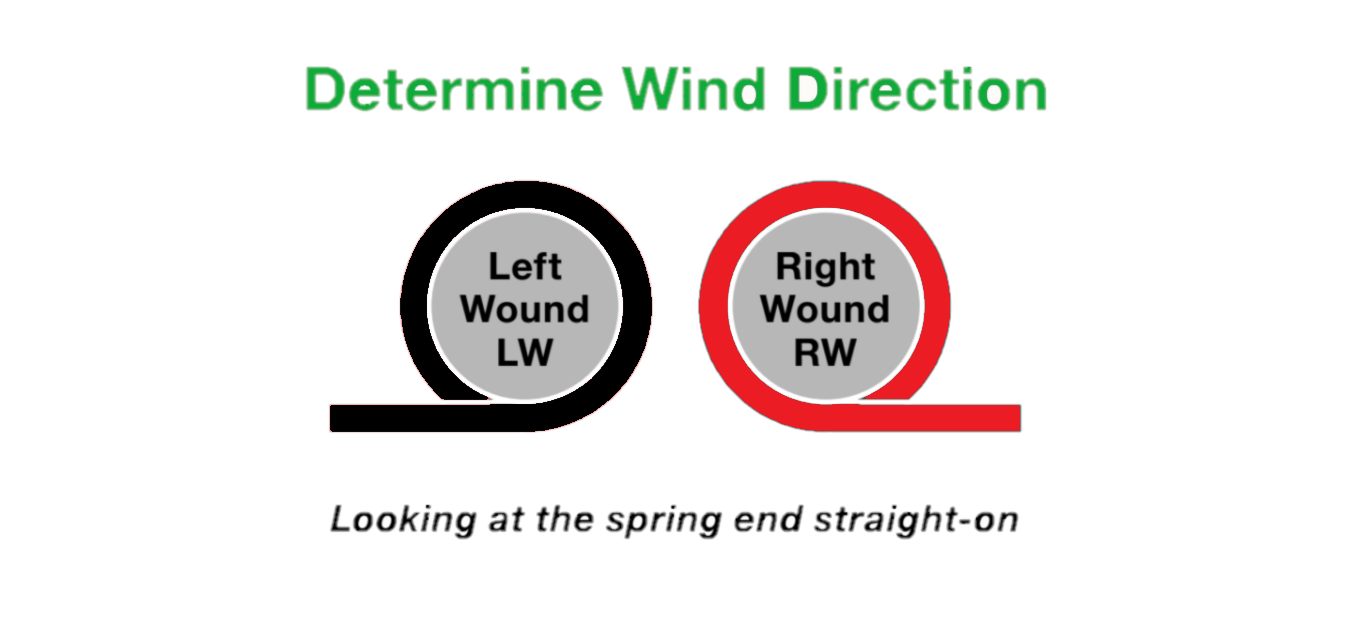

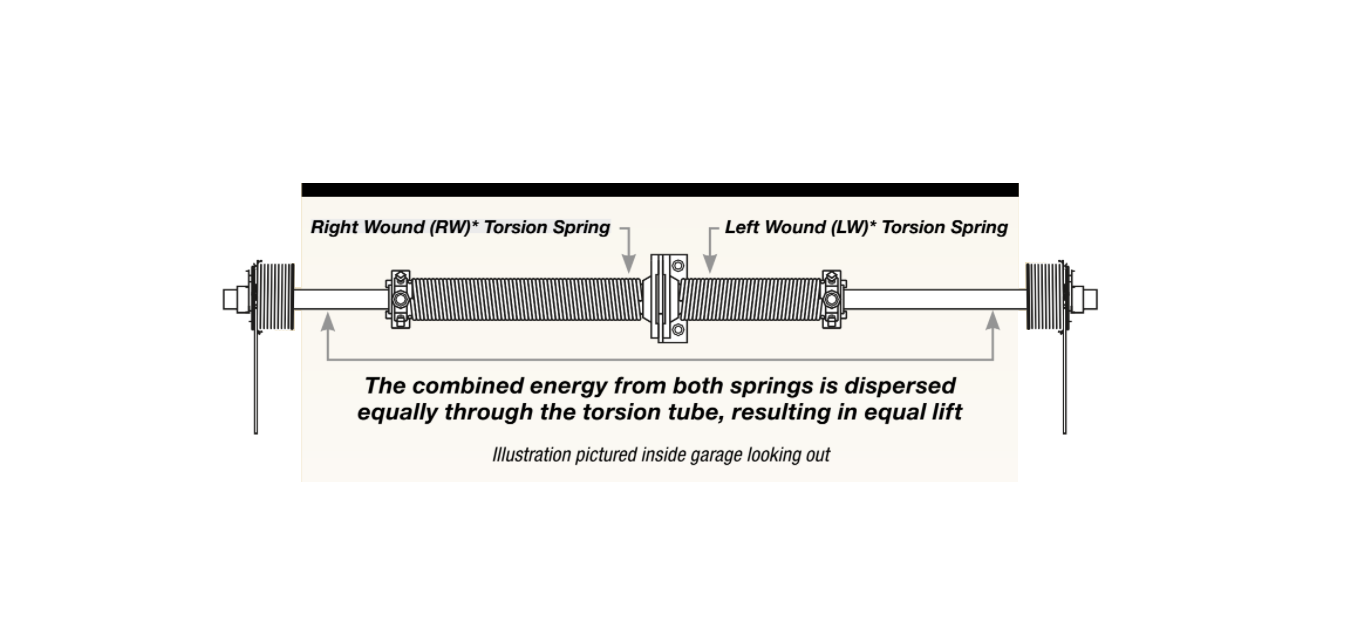

• Wind direction (left-wind / right-wind)

If you’re replacing an existing spring, match the specs from your current spring(s) or contact us for help.

 Optional Add-On

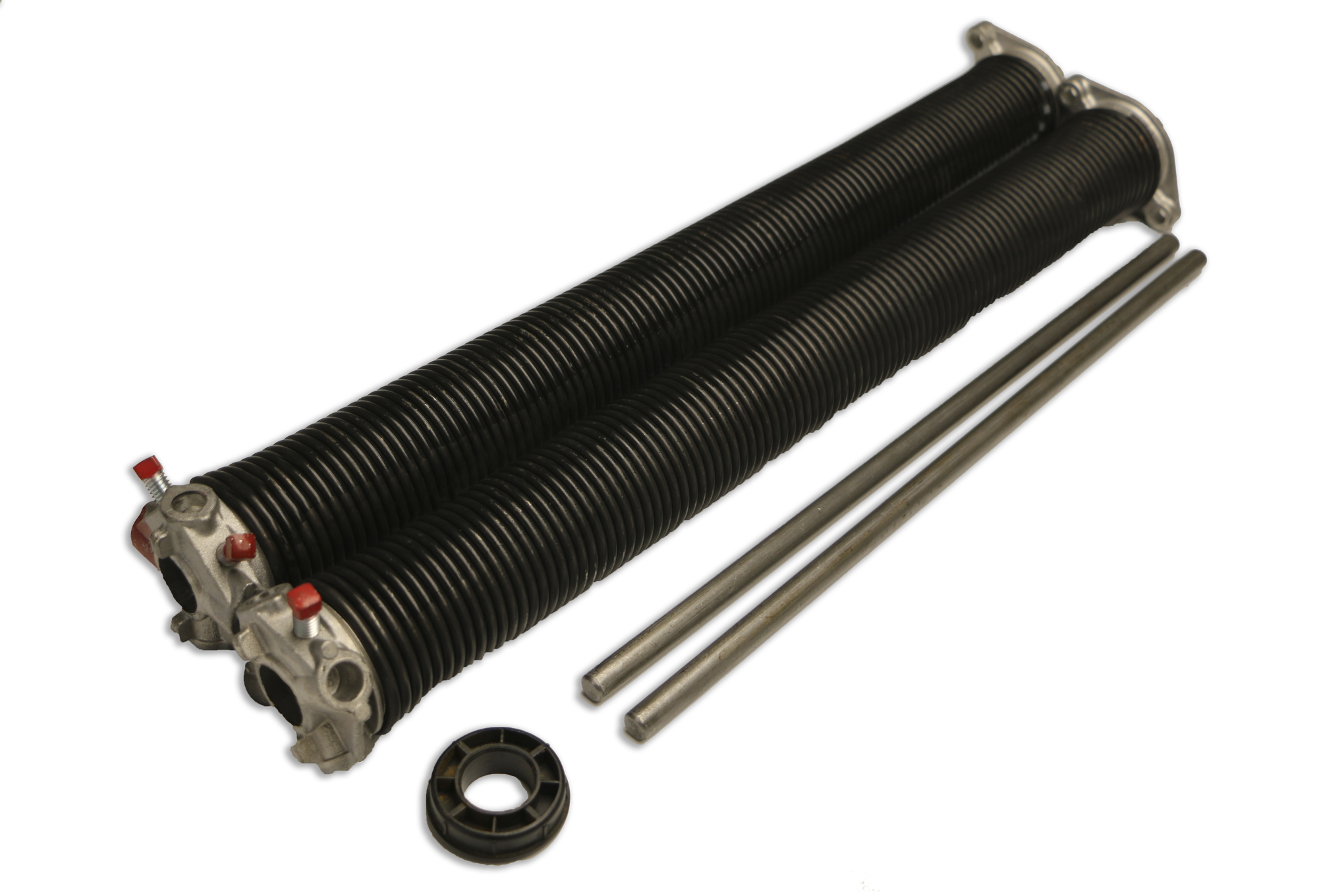

• Option to purchase winding bars for torsion spring service

 Safety Note

Torsion springs are under extreme tension. For safety and best results, installation by a qualified garage door technician is strongly recommended.
